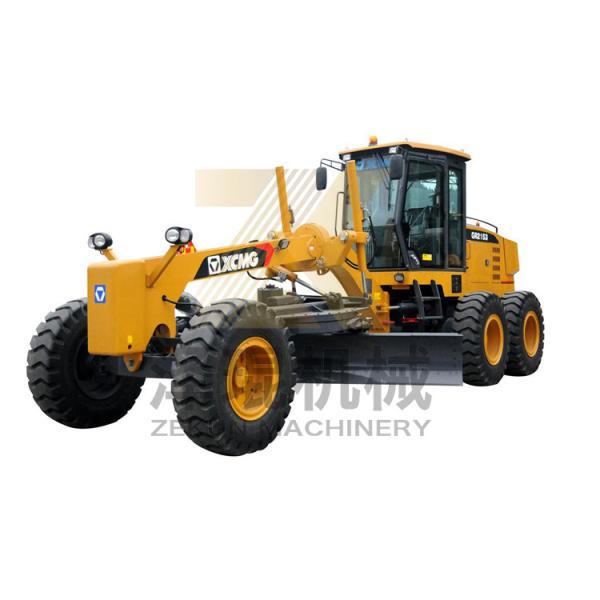

Yellow XCMG GR2153 Motor Grader For Road Construction

Ask Lasest Price
Brand Name :	XCMG
Model Number :	GR2153
Certification :	IOS/CE
Price :	Call for price
Payment Terms :	T/T
Delivery Time :	7-15days

Add to Cart

Product Details
Company Profile

Yellow XCMG GR2153 Motor Grader For Road Construction

Model: Motor Grader	Condition: Brand New	Application: Construction
Brand Name: XCMG	Model Number:GR2153	Certification: ISO,CE
Rated Working Pressure: 20MPa	Max. Gradeability: ≥25%	Dimension: 8970x2625x3420mm
Total Weight: 16500kg	Engine: QSB6.7	Place of Origin: Jiangsu, China (Mainland)
Warranty: 1 year	Color: Yellow	After-sales Service Provided: Engineers available to service machinery overseas

Item	Content		Unit	GR2153
Basic parameter	Engine model			QSB6.7
	Rated power/speed		kW/rpm	164/2000
	Machine dimension(standard)		mm	8970x2625x3420
	Machine weight(standard)		kg	16500
	Tire specification			17.5--25
	Wheel track		mm	2156
	Axle distance between front and rear		mm	6219
	Minimum ground clearance		mm	430
	Wheel base between middle and rear		mm	1538
Performance parameters	Drive speed, forward		km/h	5/8/11/19/23/38
	Drive speed, reverse		km/h	5/11/23
	Traction force f=0.75		kN	≥85
	Maximum gradeability		%	≥25
	Tire inflation pressure		kPa	260
	Work system pressure		MPa	20
	Transmission box pressure		Mpa	1.4-1.8
Working parameters	Maximum steering angle, front wheel		°	±48
	Allowable tilt angle, front wheel		°	±17
	Maximum oscillation, front axle		°	±15
	Maximum oscillation, balance box		°	±15
	Maximum steering angle, frame		°	±27
	Minimum turning radius		m	7.3
	Blade	Maximum lift above ground	mm	400
		Maximum cutting depth	mm	500
		Maximum tilt angle	°	90
		Cutting angle	°	28-70
		Swivel angle	°	360
		Length × Height	mm	4270x610
Capacities	Coolant		L	50
	Fuel tank		L	280
	Engine		L	24
	Transmission box		L	38
	Balance box		L	120
	Drive axle		L	36
	Hydraulic oil		L	110

Yellow XCMG GR2153 Motor Grader For Road Construction

• Guarantee of delivery
Support online transactions through Alibaba, Verified supplier
-------------------------------------------------------------------------------------------------------------------------------------------
•Which payment terms can you accept?
Normally we can work on the T/T term or L/C term.
1. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled prior to shipment, or against the copy
of original B/L for long-term cooperating clients.
2. On L/C term, a 100% irrevocable L/C without “soft clauses” from an internationally recognized bank can be accepted. Please seek the advice from the individual manager whom you work with.
-------------------------------------------------------------------------------------------------------------------------------------------
•Which INCOTERMS 2010 terms can you work?
We are a professional and sophisticated international player, can handle all INCOTERMS 2010 terms, and we normally work on regular terms such as EXW,FOB,CFR,CIF.
-------------------------------------------------------------------------------------------------------------------------------------------
•How long will your price be valid?
We are a tender and friendly supplier, never greedy on windfall profit. Our price remains stable throughout the year, We only adjust our price based on two situations.
1. The rate of USD, and RMB varies significantly according to the international currency exchange rates;
2. Manufacturers/Factories adjusted the machine price, because of the increasing labor cost and raw material cost.
-------------------------------------------------------------------------------------------------------------------------------------
•WHAT LOGISTICS WAYS CAN YOU WORK FOR SHIPMENT?
We can ship construction machinery with various transportation tools.
1. For 80% of our shipment, the machine will go by sea, to all main continents such as Africa, South America, Middle East. Oceania and Southeast Asia etc., either by container or RoRo / Bulk shipment.
2. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan, Turkmenistan, etc., we can send machines by road or railway.
