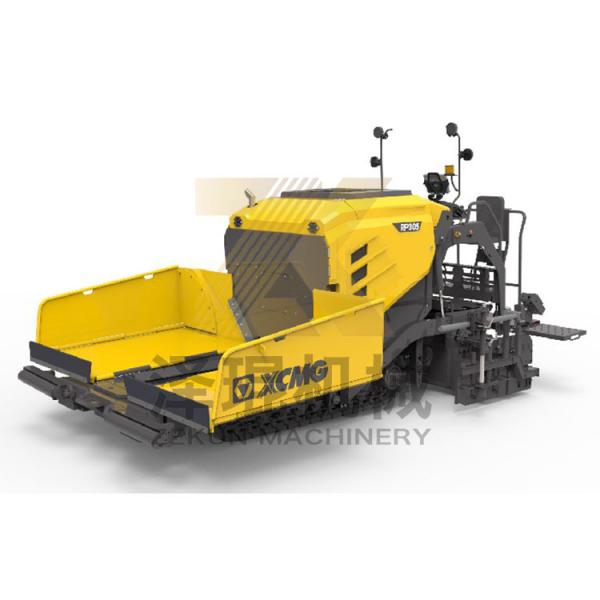

7.6ton 1.1m 2.0m XCMG RP305 PAVER EC Stage V road construction equipment

Ask Lasest Price
Brand Name :	XCMG
Model Number :	RP305
Certification :	IOS/CE
Price :	Call for price
Payment Terms :	T/T
Delivery Time :	7-15days

Add to Cart

Product Details
Company Profile

7.6ton 1.1m 2.0m XCMG RP305 PAVER EC Stage V road construction equipment

Model: Asphalt Concrete Paver	Condition: Brand New	Application: Construction
Brand Name: XCMG	Model Number: RP305	Certification: ISO, CE
Basic paving width: 1100-2000mm	Max. Gradeability: 20%	Main Dimension: 4910X1450X1980mm
Total Weight: 7.6ton	Engine: Kubota	Place of Origin: Jiangsu, China (Mainland)
Emission Tier: EC Stage V	Color: Yellow	After-sales Service Provided: Engineers available to service machinery overseas

Item	Content	Unit	RP305
Basic parameters	Basic paving width	mm	1100~2000
	Max. paving width	mm	3200
	Max. pave thickness	mm	200
	Max. paving speed	m/min	30
	Max. drive speed	km/h	3.6
	Maximum theoretical productivity	t/h	260
	Max. gradeability	%	20
Engine	Manufacturer	-	Kubota
	Model	-	V3800
	Emission	-	EC Stage V
	Fuel	-	Diesel
	Rated power	kW	55.4
	Rated speed	rpm	2200
Crawler	Grounding length	mm	1703
Crawler	Track width	mm	180
Conveyor	Hopper capacity	t	5.8
	Scraper numbers	-	1
	Scraper speed(maximum)	m/min	25
Auger	Speed(maximum)	rpm	70
Auger	Diameter	mm	300
Electrical system	Battery voltage	V	24
Weight	Tractor weight	t	6.2
	Operating weight	t	7.6
	Total weight	t	7.8
Noise	Sound pressure level LPA at the operator ears	dB(A)	90
Noise	Emitted sound level	dB(A)	104
Main configuration	1. Kubota EC Stage Ⅴ engine with 55.4kW;
	2. E1120TV hydraulic extending screed(single tamper+vibrator+electric heating);
	3. Standard intelligent control system;
	4. MOBA leveling instrument/material level instrument;
	5. Wireless remote control.
Options	1. Bolt-on extensions: 2x0.45m+2x0.15m, maximum paving width 3.2m.
	2. Bolt-on extensions: 2x0.45m, maximum paving width 2.9m.
	3. Bolt-on extensions: 2x0.15m, maximum paving width 2.3m.
	4. Cut-off shoes.
