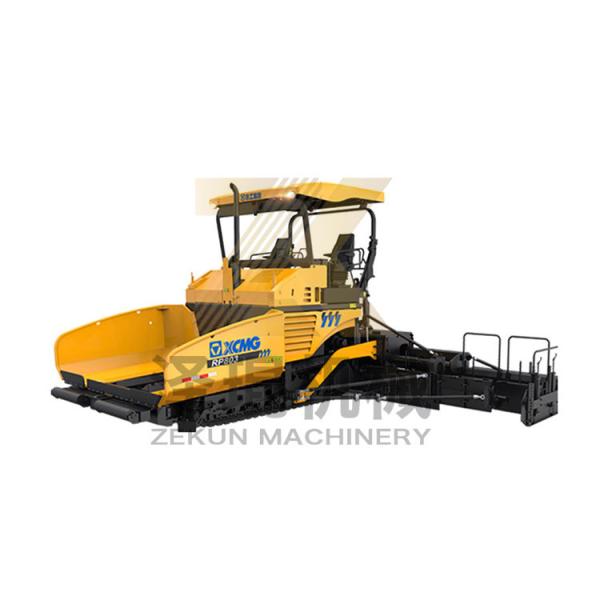

22.8ton 2.5m 5m XCMG RP803 PAVER EC Stage III road construction equipment

Ask Lasest Price
Brand Name :	XCMG
Model Number :	RP803
Certification :	IOS/CE
Price :	Call for price
Payment Terms :	T/T
Delivery Time :	7-15days

Add to Cart

Product Details
Company Profile

22.8ton 2.5m 5m XCMG RP803 PAVER EC Stage III road construction equipment

Model: Asphalt Concrete Paver	Condition: Brand New	Application: Construction
Brand Name: XCMG	Model Number: RP803	Certification: ISO, CE
Basic paving width: 2500-5000mm	Max. Gradeability: 20%	Main Dimension: 7080X3387X4000mm
Total Weight: 22.8ton	Engine: QSB6.7	Place of Origin: Jiangsu, China (Mainland)
Emission Tier: EC Stage III	Color: Yellow	After-sales Service Provided: Engineers available to service machinery overseas

Item	Content	Unit	RP803
Basic parameters	Basic paving width	mm	2500～5000
	Max. paving width (Options)	mm	6500～8000
	Max. pave thickness	mm	400
	Max. paving speed	m/min	20
	Max. drive speed	km/h	3
	Maximum theoretical productivity	t/h	800
	Max. gradeability	%	20
Engine	Manufacturer	-	Cummins
	Model	-	QSB6.7
	Emission	-	EC Stage Ⅲ
	Fuel	-	Diesel
	Rated power	kW	142
	Rated speed	rpm	2000
Crawler	Grounding length	mm	3175
Crawler	Track width	mm	300
Conveyor	Hopper capacity	t	14
	Scraper numbers	-	2
	Scraper speed(maximum)	m/min	27
Auger	Speed(maximum)	rpm	90
Auger	Diameter	mm	420
Electrical system	Battery voltage	V	24
Weight	Tractor weight	t	16.7
	Operating weight	t	20.5
	Total weight	t	22.8
Noise	Sound pressure level LPA at the operator ears	dB(A)	86
Noise	Emitted sound level	dB(A)	105
Main configuration	1. Cummins EC Stage III engine with 142kW;
	2. E500A four support hydraulic extending screed(electric heating, single tamper);
	3. Standard intelligent control system;
	4. MOBA leveling instrument/material level instrument;
	5. Automatic centralized lubrication;
Options	1. E500A bolt-on extension: 4x0.75m, maximum paving width 8m.
	2. E500A bolt-on extension: 2x0.75m, maximum paving width 6.5m.
	3. Diesel spraying device.
	4. Eccentric vibration;
	5. Change to E600T hydraulic extending screed, basic width 3-5.85m;
	6. E600T extension: 2x0.9m+2x0.25m, maximum paving width 8.15m.

22.8ton 2.5m 5m XCMG RP803 PAVER EC Stage III road construction equipment

• Guarantee of delivery
Support online transactions through Alibaba, Verified supplier
-------------------------------------------------------------------------------------------------------------------------------------------
•Which payment terms can you accept?
Normally we can work on the T/T term or L/C term.
1. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled prior to shipment, or against the copy
of original B/L for long-term cooperating clients.
2. On L/C term, a 100% irrevocable L/C without “soft clauses” from an internationally recognized bank can be accepted. Please seek the advice from the individual manager whom you work with.
-------------------------------------------------------------------------------------------------------------------------------------------
•Which INCOTERMS 2010 terms can you work?
We are a professional and sophisticated international player, can handle all INCOTERMS 2010 terms, and we normally work on regular terms such as EXW,FOB,CFR,CIF.
-------------------------------------------------------------------------------------------------------------------------------------------
•How long will your price be valid?
We are a tender and friendly supplier, never greedy on windfall profit. Our price remains stable throughout the year, We only adjust our price based on two situations.
1. The rate of USD, and RMB varies significantly according to the international currency exchange rates;
2. Manufacturers/Factories adjusted the machine price, because of the increasing labor cost and raw material cost.
-------------------------------------------------------------------------------------------------------------------------------------
•WHAT LOGISTICS WAYS CAN YOU WORK FOR SHIPMENT?
We can ship construction machinery with various transportation tools.
1. For 80% of our shipment, the machine will go by sea, to all main continents such as Africa, South America, Middle East. Oceania and Southeast Asia etc., either by container or RoRo / Bulk shipment.
2. For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan, Turkmenistan, etc., we can send machines by road or railway.
